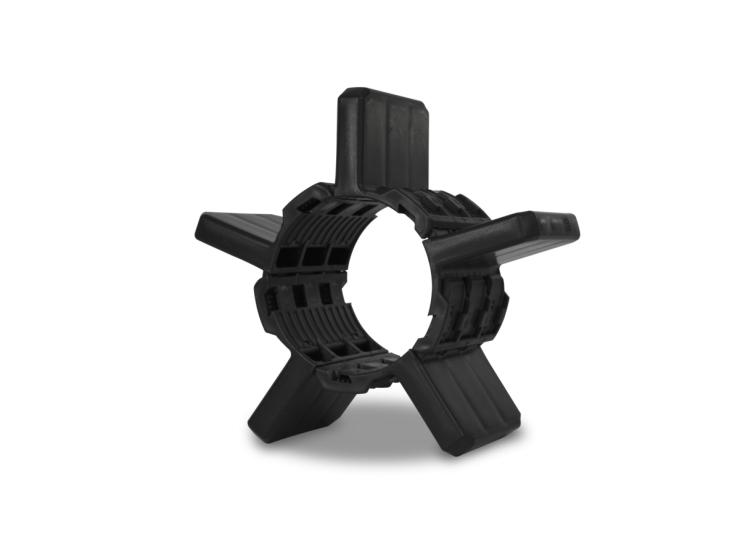

Ranger II® Casing Spacers

Product Description

Customers may choose from any one of five different sized bands to ensure correct sizing for carrier pipe O.D. from 0.83" (21 mm) up to 37.60" (955 mm).

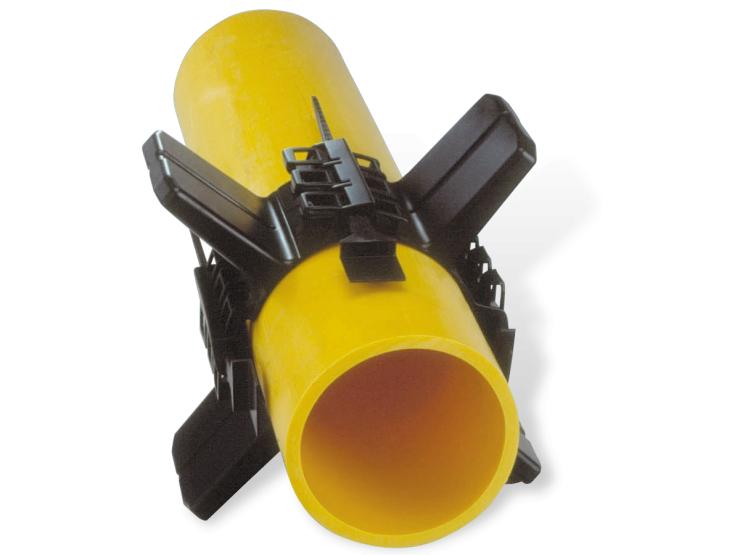

Once sized, the segments are placed around the carrier pipe and cinched together via non-metallic slide locks. Installation is quick and easy, and you only need a small inventory of segments to accommodate a large variety of pipe styles, types and diameters.

A Ranger II sizing calculator is available at GPT Industries: see the PSI / Pikotek Ranger II® SPACER CALCULATOR - VERSION 1.0.0

Features and Benefits

• No nuts, bolts, washers or any other metal parts that will corrode or degrade over time
• Easy assembly. Simply slide the segments together and ratchet tight with patented Slide-Lock connecting system
• Wide variety of runner heights to allow numerous options for pipe positioning within the casing
• Manufactured from UV-resistant polypropylene
• Wide temperature range
• Eliminates sand or grout fill
• No special tools required for installation
• Low coefficient of friction, allowing ease of installation
• Will accommodate small conduit attachment for communications or electrical cable
• Runner variations may be used to adjust for grade
• Ranger II® Non-Metallic casing spacers are stocked to accommodate a variety of pipe diameters and available for immediate delivery.

Specifications

• Designed for carrier pipe diameters from 0.83” (21mm) to 37.60” (955mm) in diameter
• Impact strength: 1.5 ft. lbs./inch (0.8 joules/cm)
• Compressive strength: 3,000 psi (211 kg/square cm)
• Dielectric strength: 800 volts/mil.
• Recommended end seals: Model R, C, W, and S

Applications

An all non-metallic casing spacer system designed to ease carrier pipe insertion with quick installation to last the life of the piping system.

Additional Information

• Medi and Maxi segments, 2 molded runners per segment
• Segment band and runners molded as one unit
• Ranger II@ Spacers should not to be used on concrete carrier pipe.

Ranger II® Casing Spacers

The GPT Ranger II® casing spacer is a non-metallic pipeline support product designed to ease carrier pipe insertion, reduce inventory costs, and make installation faster and safer.
